Detailed Engineering Design Services for EPC of CPSF Debottlenecking and Capacity Upgrade at Turkmenistan

Client


Contractor

_yMGbJj1wVFmN9_kysUAnAH2Ly22MF659GRfLRvJfsBbfl-6IZmCREqeb4i2aS2HmRziz0RDOPwJ6CDSWKGFbg7aIK

Duration

August 2022
-
February 2024

Central Processing and Storage Facility (CPSF) handles production from LAM and ZHD fields

Capacity: 100,000 bpd oil, 25,000 bpd water, 200 MMSCFD gas

The debottlenecking study and capacity upgrade studied issues in liquid & vapor streams and to upgrade for future production and increased water handling

Scope of Work (SOW):

  • Reroute liquid outlet from slug catcher

  • Retrofit LP three-phase separator

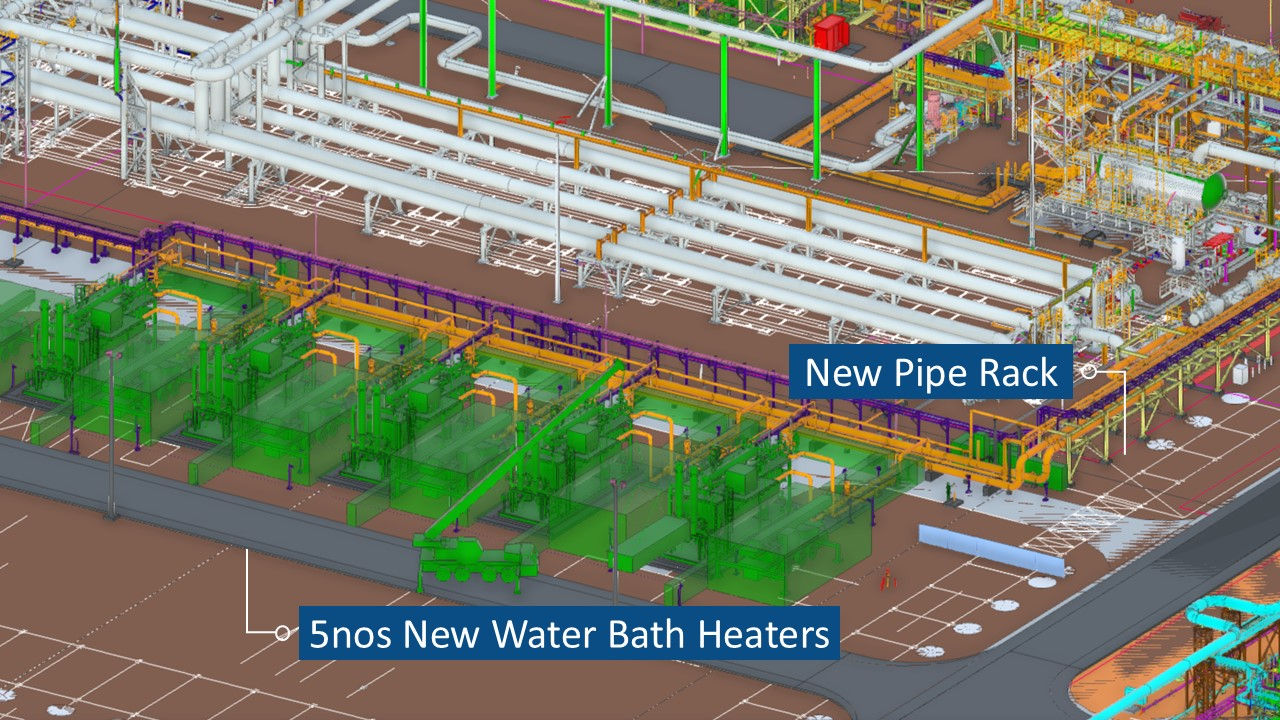

  • Install new equipment (Water Bath Heaters, Oil/Water Transfer Pumps, De-sander Cyclones, Gas Scrubber, Flow Transmitters/Control, Substation Building, Battery Room, FACP, UPS, Instrument Air Package)

  • Expand control & monitoring systems

  • Upgrade firefighting and F&G detection/protection systems

  • Install associated piping, valves, control systems, safety systems, fittings, strainers, sample points, analyzers
